Drum Sound (CB24639E)

Details
Written by: Newton C. Braga

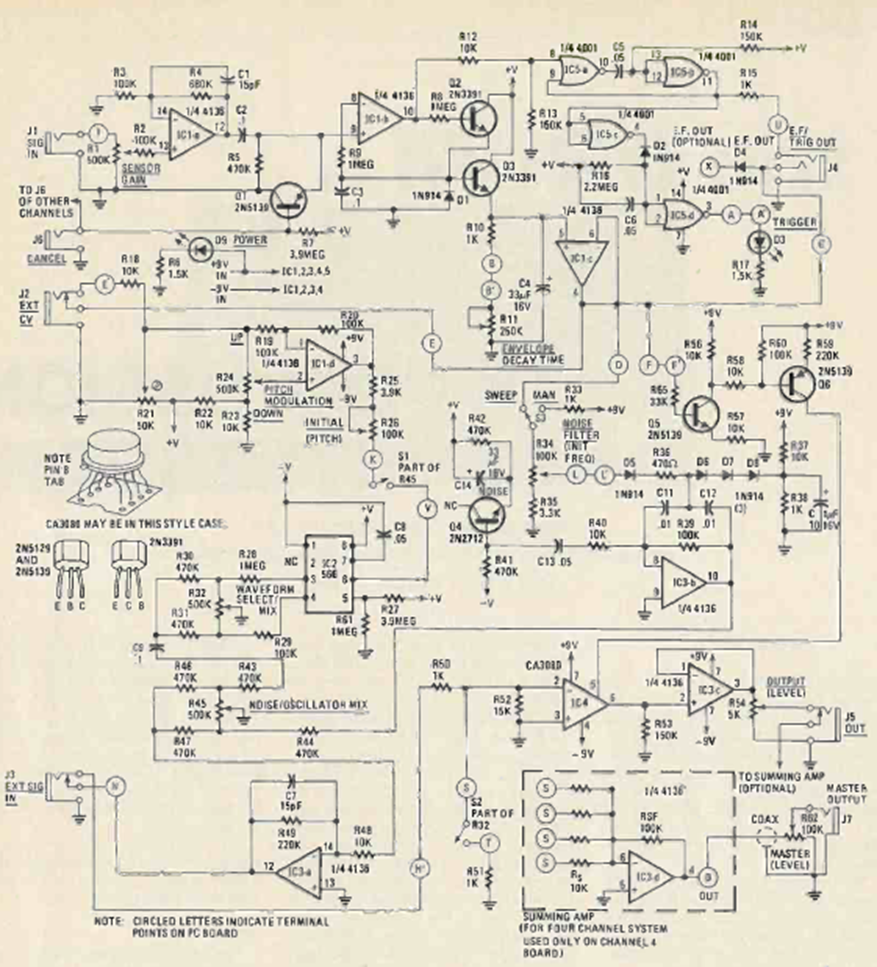

This sophisticated drum sound synthesizer was featured in the May 1980 issue of Radio Electronics magazine. The circuit is based on common integrated circuits and its output must be connected to an amplifier.
