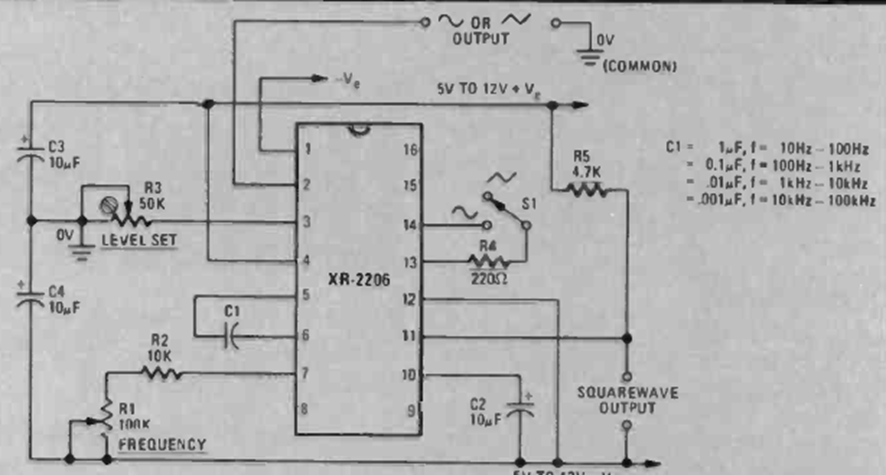

This simple version of a function generator with the XR2206 was found in the May 1977 issue of Radio Electronics magazine. The values of C1 for the various frequency bands are given next to the diagram.
| Clique na imagem para ampliar |
XR2206 Function Generator (CB24506E)
- Details
- Written by: Newton C. Braga
