Ultra-simple logic probe (CB24518E)
- Details
- Written by: Newton C. Braga

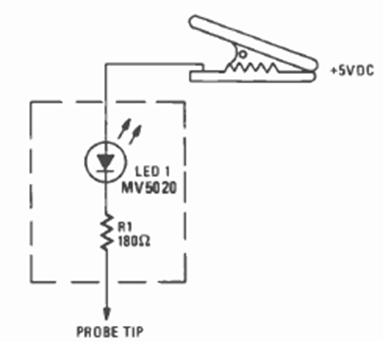

This two-component circuit was suggested by Radio Electronics magazine in its August 1977 issue. The LED can be any color, and the power comes from the circuit under test.
