12 Second Timer (CB24073E)

Details
Written by: Newton C. Braga

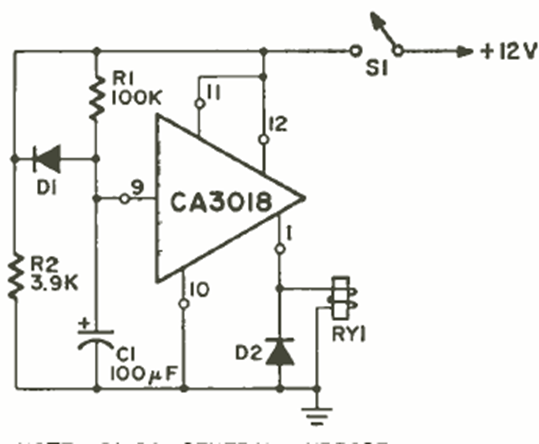

This circuit turns on the relay 12 seconds after S1 is closed. The time is given by C1. The circuit is from an August 1970 Radio Electronics article, found in an article about the CA3018.
