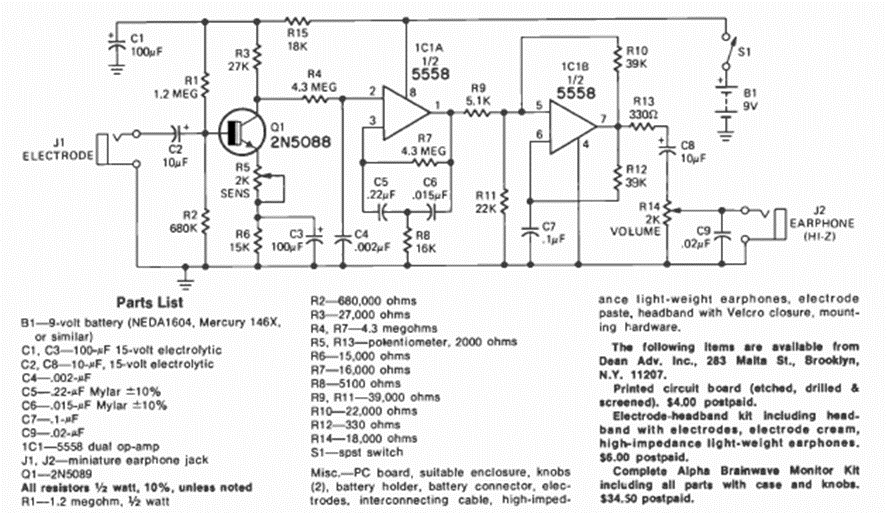

This circuit was published in the January 1975 issue of Radio Electronics magazine. An article showed how to assemble it. The operational amplifiers used support modern equivalents and even the 741 can be used since the 5558 is a dual version of this component.
