Music Box (CB24645E)

Details
Written by: Newton C. Braga

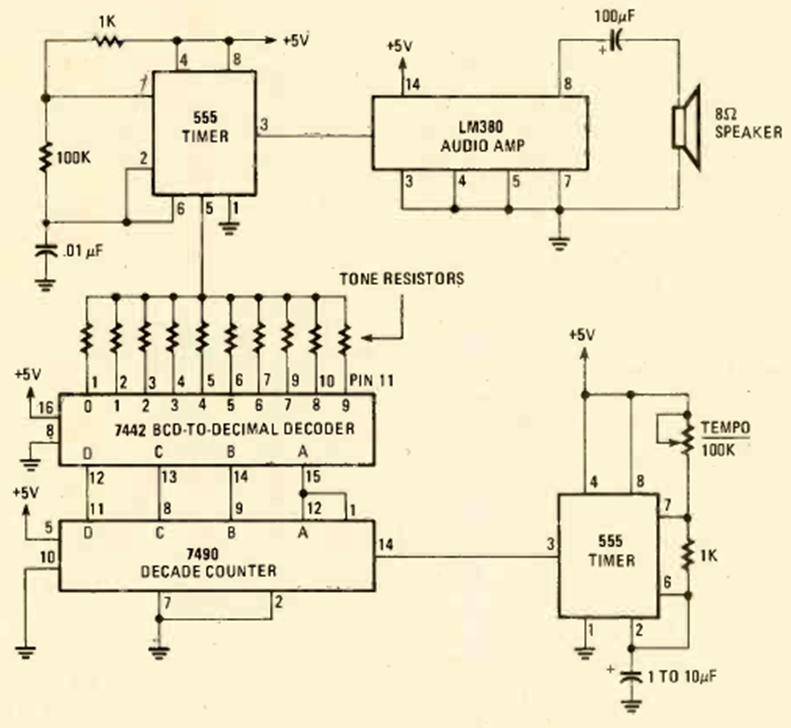

This sequential tone generator circuit was found in the July 1980 issue of Radio Electronics magazine. It uses well-known integrated circuits. The tones are generated by programming resistors.
