Telephone Busy Indicator (CB24430E)

Details
Written by: Newton C. Braga

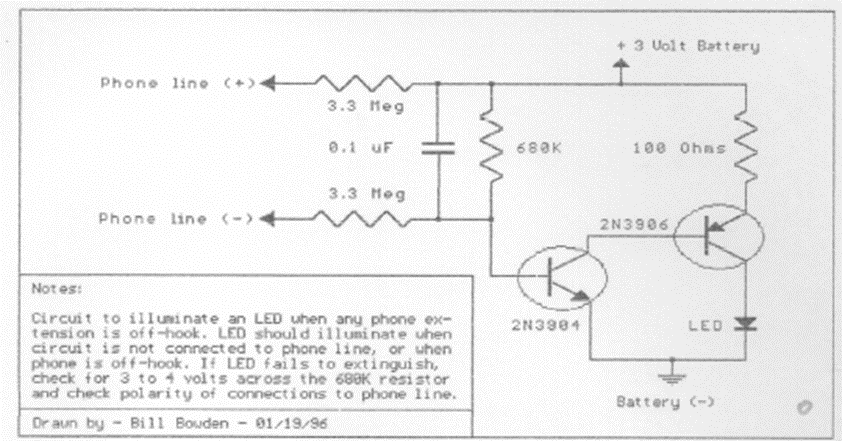

This circuit for analog telephones from the 90s was found in documentation from the time. It lights up a remote LED when the extension is in use.




| Clique na imagem para ampliar |
