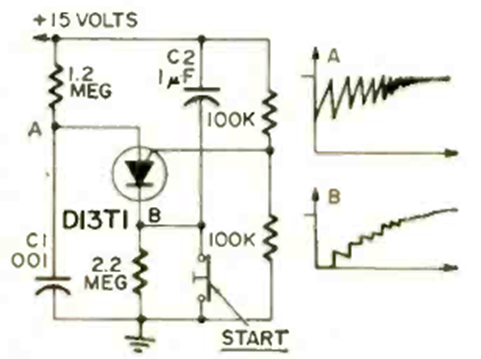

The waveform generated by this circuit produces a sound similar to that of a bird. The circuit is based on a unijunction programmable transistor and was found in a Radio Electronics issue of November 1970.
Chirp Oscillator (CB24088E)
- Details
- Written by: Newton C. Braga
