Overcurrent switch CA3140 (CB24975E)

Details
Written by: Newton C. Braga

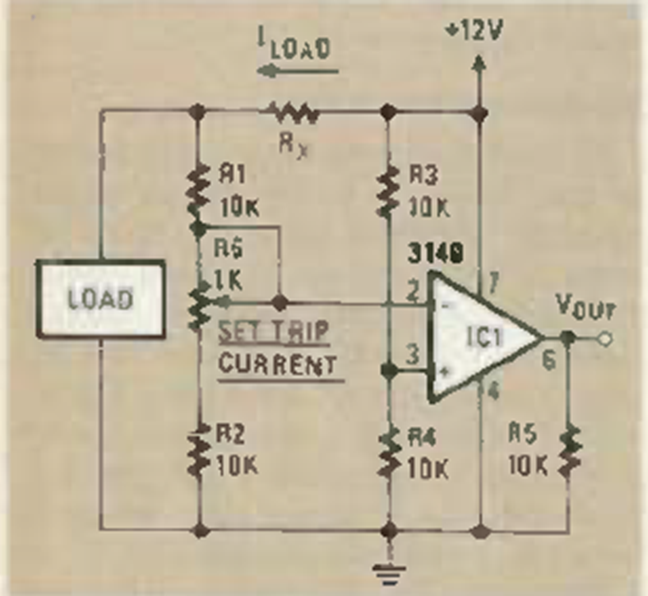

This circuit trips when the current in a load exceeds the programmed value that depends on Rx. The circuit is from the Radio Electronics magazine of June 1986.




| Clique na imagem para ampliar |
