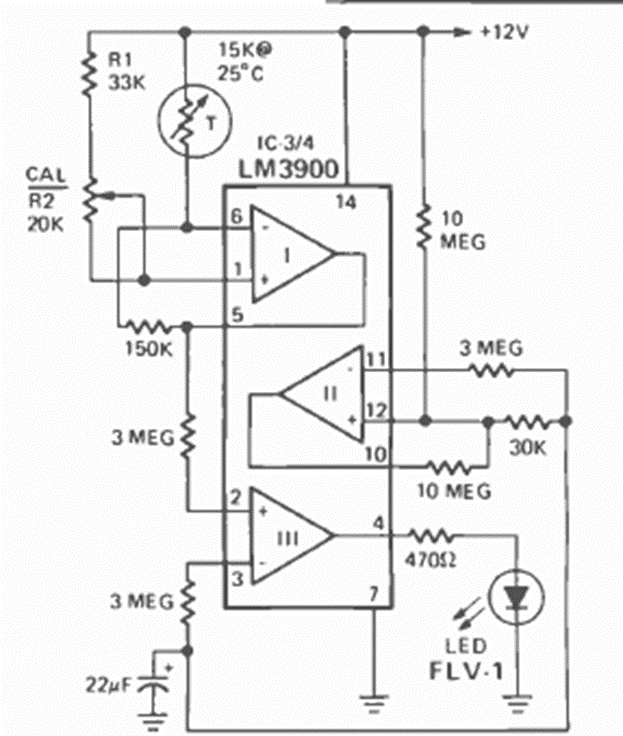

The purpose of this circuit with the LM3900 is to detect the outside temperature by triggering an LED indicator when it is below zero. The circuit is from a Radio Electronics magazine from January 1975.
Ice Alarm (CB24360E)
- Details
- Written by: Newton C. Braga
