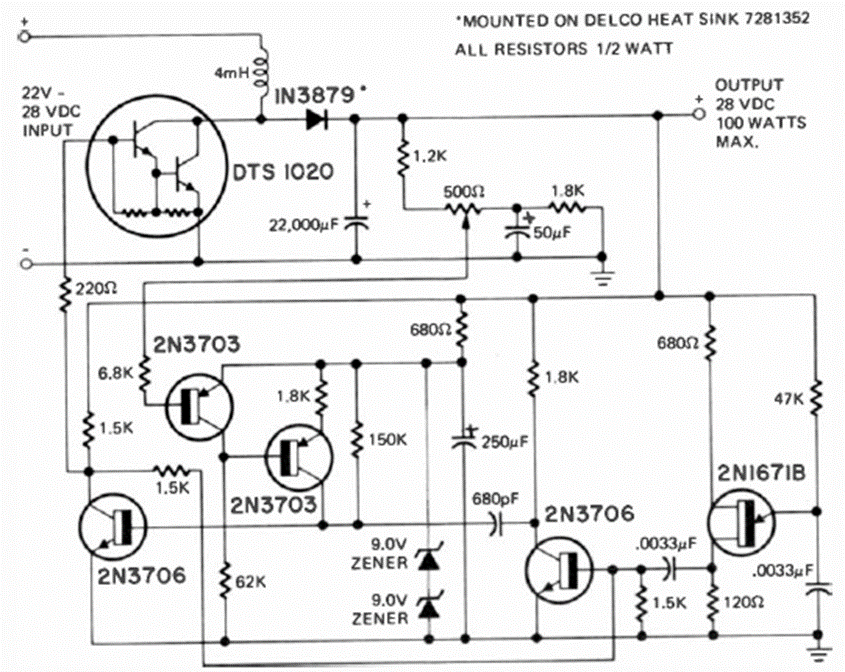

This circuit was found in the August 1973 issue of Radio Electronics magazine. The Darlington transistor is a high-power type of transistor of the time. This transistor must be equipped with a heat sink.
| Clique na imagem para ampliar |
28 V x 3 A Switching Regulator (CB24281E)
- Details
- Written by: Newton C. Braga
