5-Range Digital Frequency Counter (CB24794E)

Details
Written by: Newton C. Braga

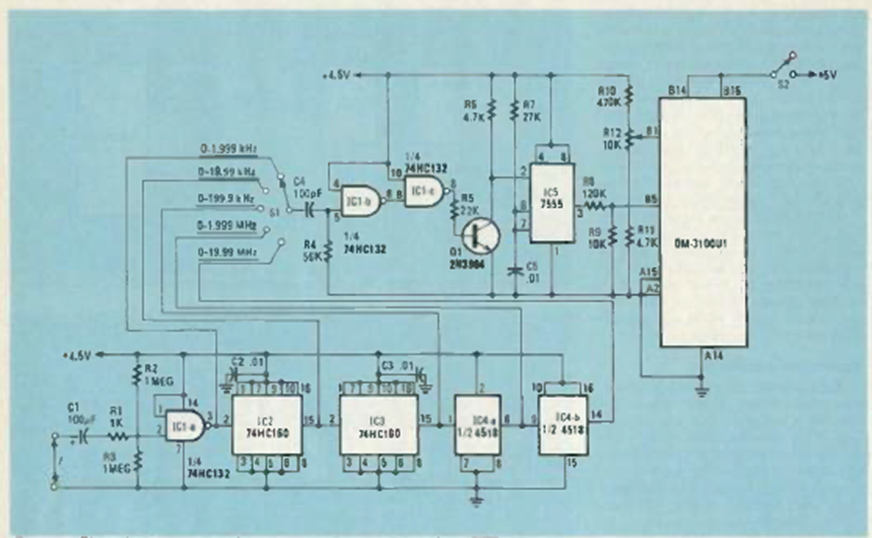

We found this circuit in the March 1984 issue of Radio Electronics magazine. The module used is a common type at the time. The other integrated circuits are common types.
