Microphone Amplifier (CB24945E)

Details
Written by: Newton C. Braga

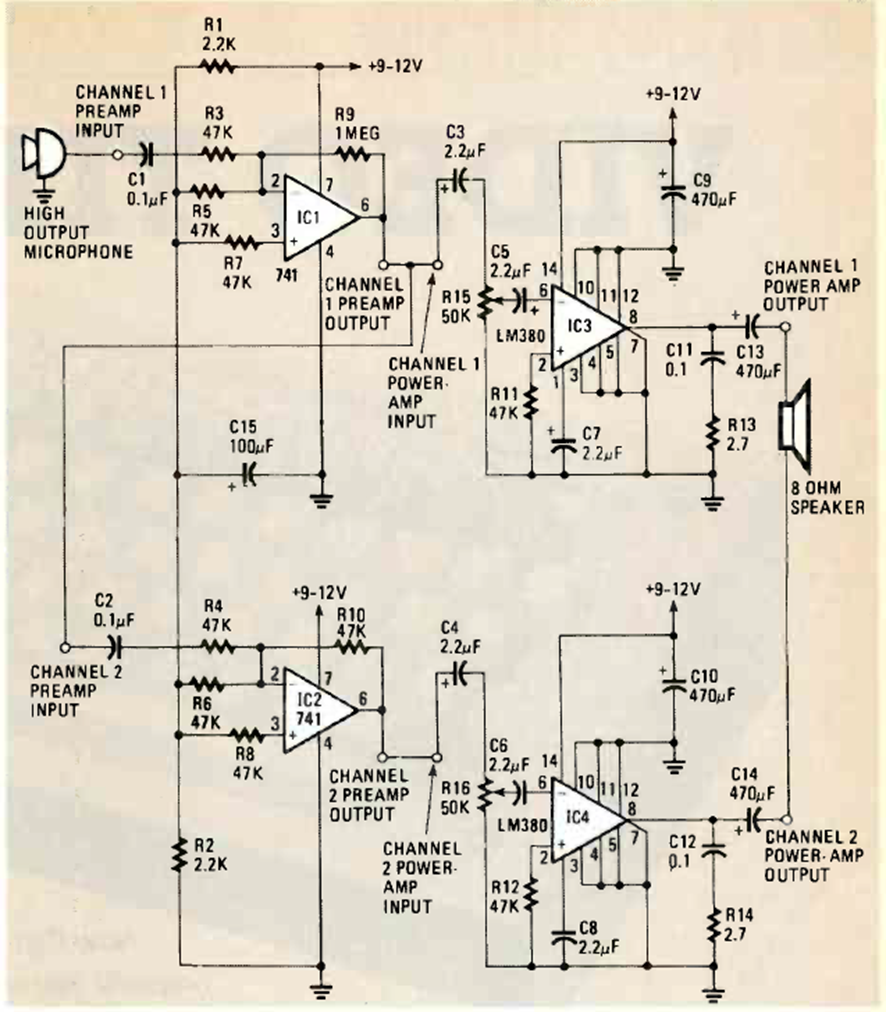

This PA or Public Address amplifier with a few watts of power was found in the March 1986 Radio Electronics magazine. It uses two LM380 ICs in bridge mode for higher power.
