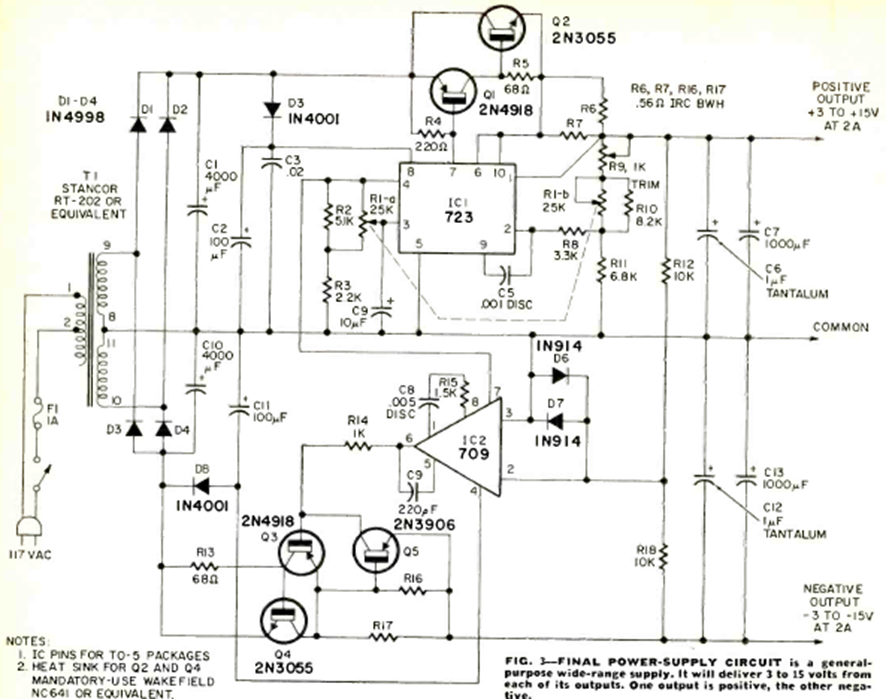

This circuit was obtained from the September 1971 issue of Radio Electronics magazine. The power transistors must be equipped with heat sinks. The 709 is an operational amplifier of the time.
