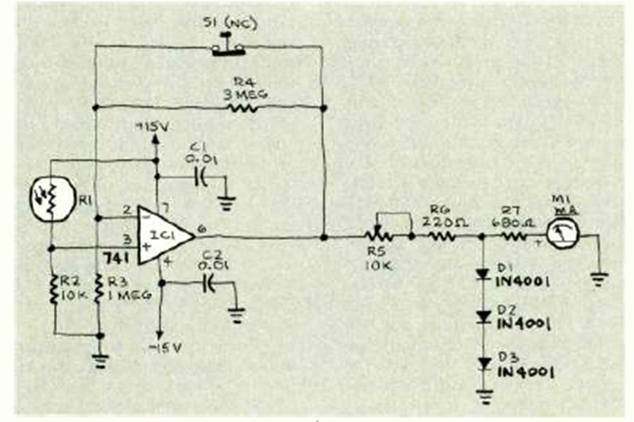

This circuit was found in the December 1983 issue of Radio Electronics magazine. The sensor is an LDR, and the power supply must be symmetrical. A standard multimeter can be used in place of the analog meter.
Contrast Meter (CB24774E)
- Details
- Written by: Newton C. Braga
