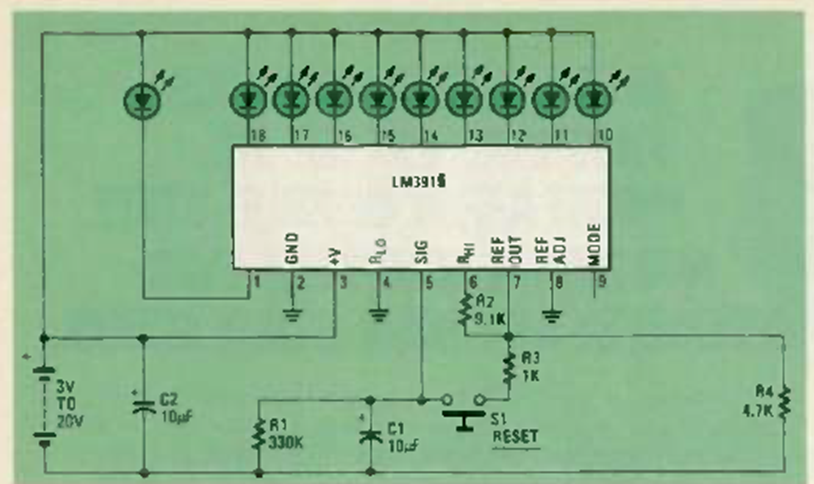

In this circuit, the LEDs light up in sequence until the last one, when the end of the timing is indicated. C1 is responsible for the timing. The circuit is from a Radio Electronics from October 1980.
