Battery Charger (CB24907E)

Details
Written by: Newton C. Braga

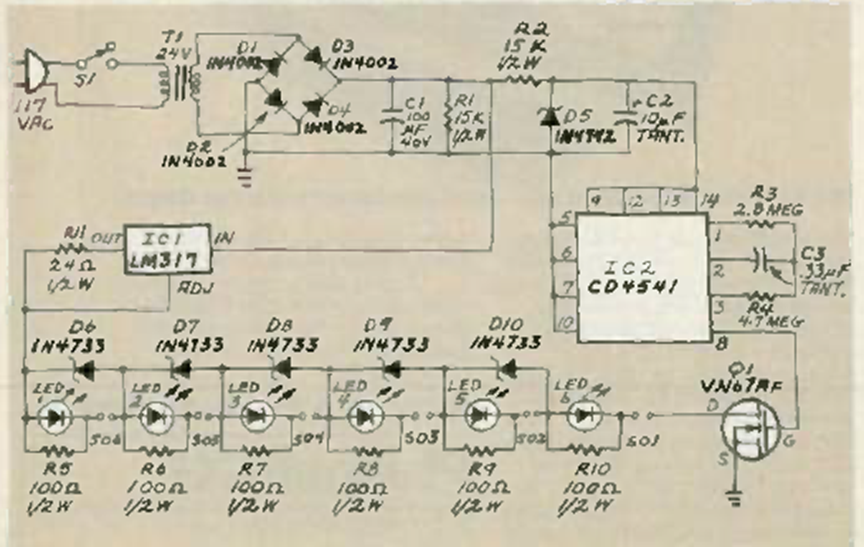

This circuit is from the September 1985 issue of Radio Electronics magazine. The circuit has an LED charge indicator and is based on CMOS logic. The MOSFET must be equipped with a heat sink.
