Wideband VCO (CB24867E)

Details
Written by: Newton C. Braga

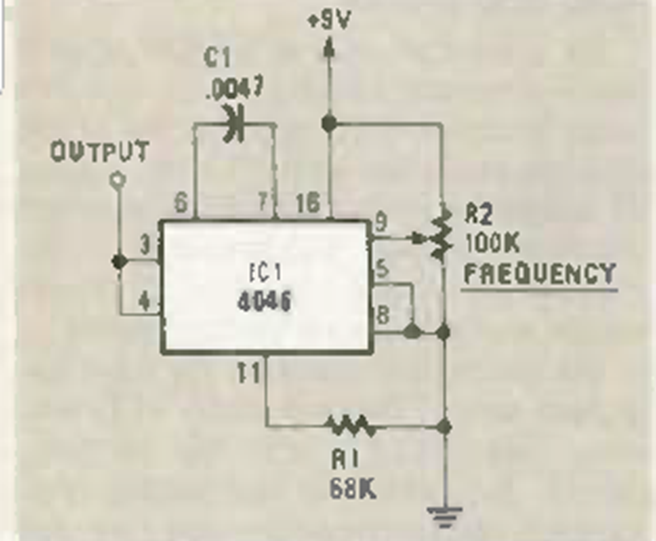

Using the CMOS IC 4046 we found this VCO in the November 1984 Radio Electronics magazine. The center frequency is given by the capacitor. The maximum frequency is around a few megahertz.




| Clique na imagem para ampliar |
