Oscilloscope Multiplexer (CB24851E)

Details
Written by: Newton C. Braga

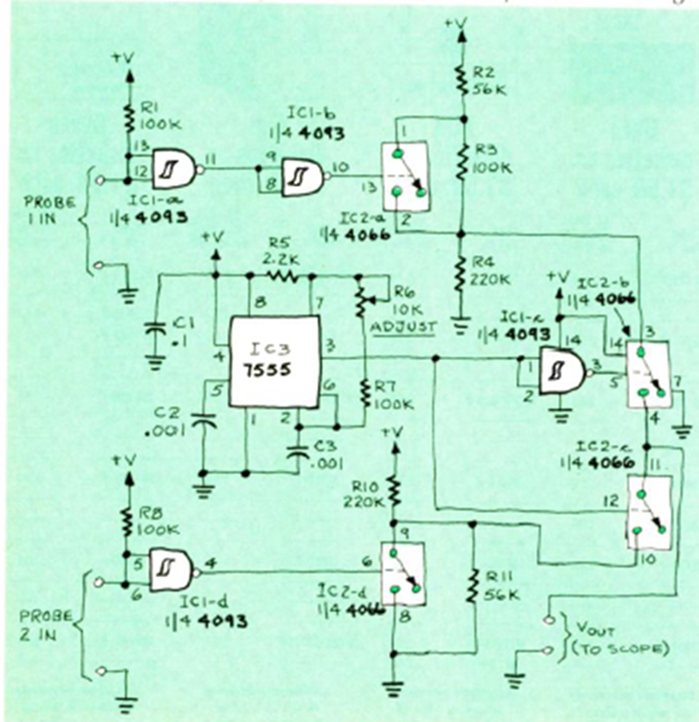

For low-frequency signals, this circuit transforms a single oscilloscope into a dual-trace. The circuit is from Radio Electronics magazine, October 1984.
