Simple power supply (CB24570E)

Details
Written by: Newton C. Braga

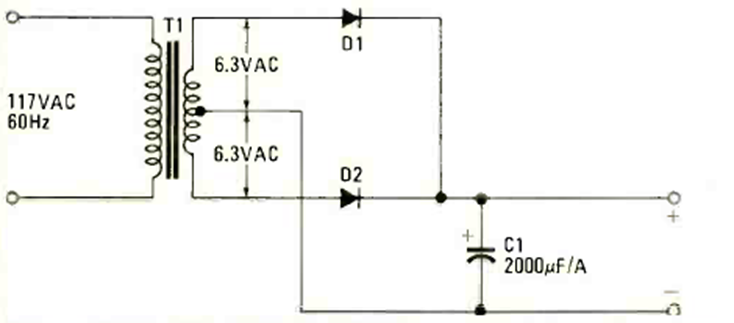

This power supply with only 4 components has basic full-wave configuration. The diodes depend on the current and the transformer voltage determines the output voltage.
