Ripple Reducer (CB24891E)

Details
Written by: Newton C. Braga

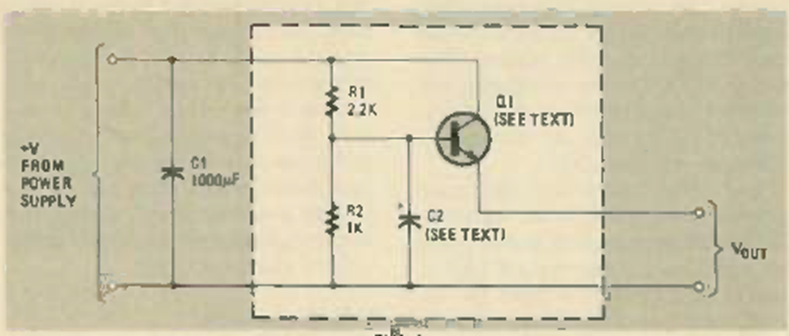

The purpose of this circuit is to reduce the ripple of a power supply. The circuit is from a Radio Electronics from March 1985. The transistor must have a capacitance according to the source.
