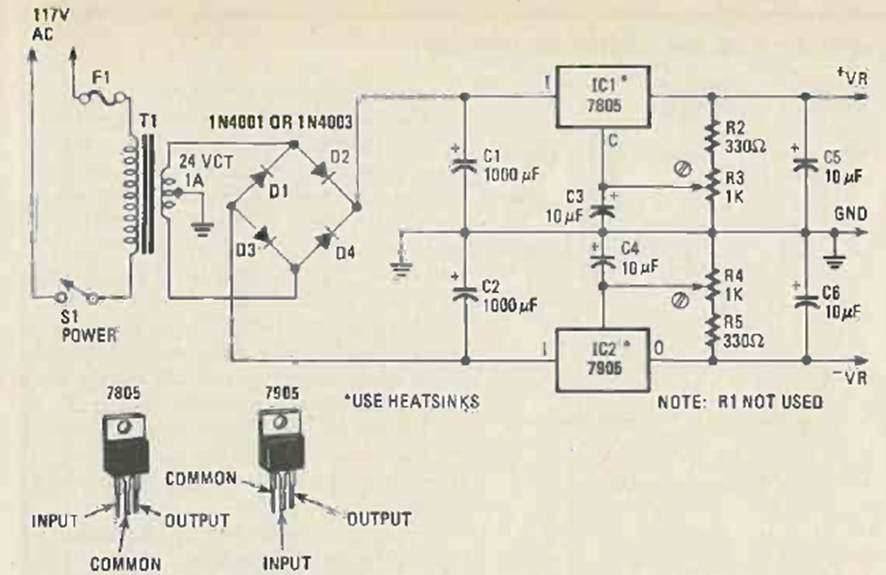

Another version of the many symmetrical power supplies we have in this section. This one is from a Radio Electronics magazine from May 1980. The maximum current is 1 A. The regulators must be equipped with heat sinks.
