XR2206 Function Generator (CB24507E)

Details
Written by: Newton C. Braga

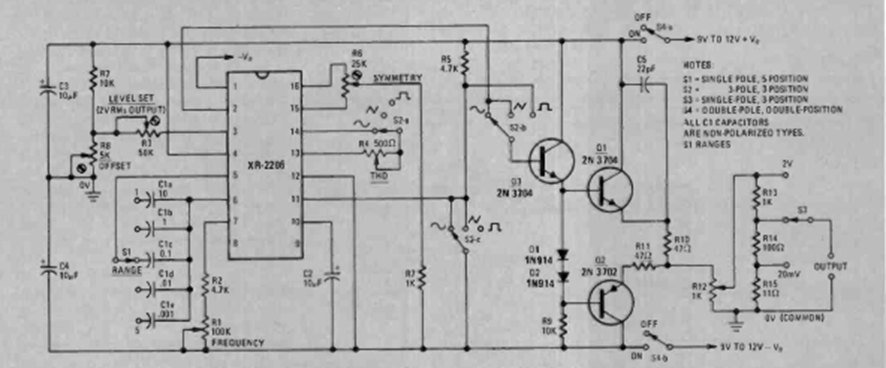

This nice function generator circuit with the XR2206 was found in the May 1977 Radio Electronics magazine. The circuit has a transistor output stage.
