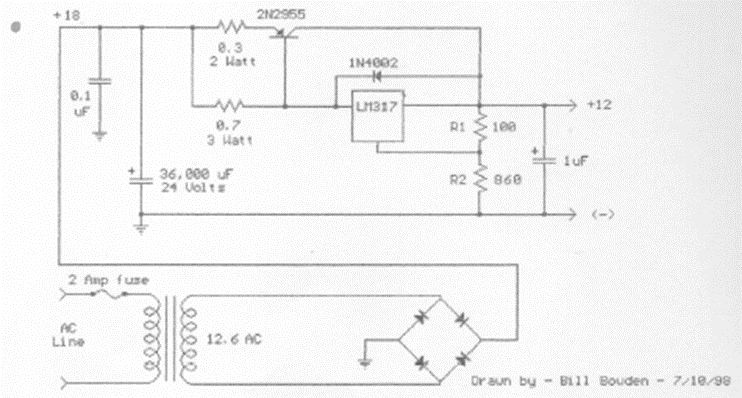

This circuit was found in documentation from the 90s. The circuit uses a transistor. Bypass to obtain more current from the regulator. The regulator and the transistor must be mounted on heat sinks.
| Clique na imagem para ampliar |
Regulator with IC and Transistor (CB24427E)
