Fuel Low Warning (CB24111E)

Details
Written by: Newton C. Braga

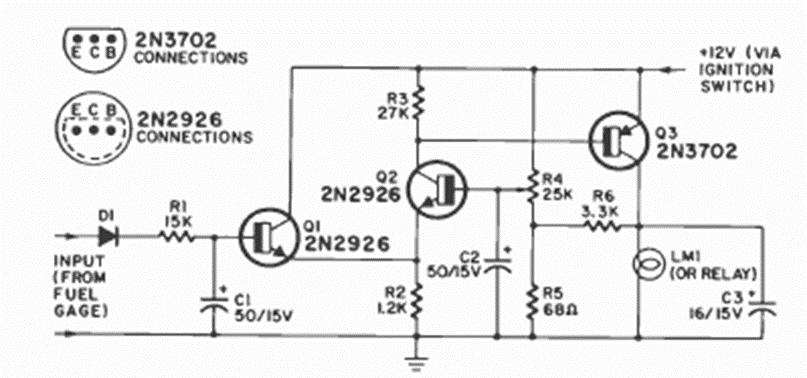

This circuit was found in the April 1971 Radio Electronics magazine. It uses common transistors and can be adapted to use an LED or audible indicator instead of a light bulb.




| Clique na imagem para ampliar |
