Sound Effects Generator (CB24733E)

Details
Written by: Newton C. Braga

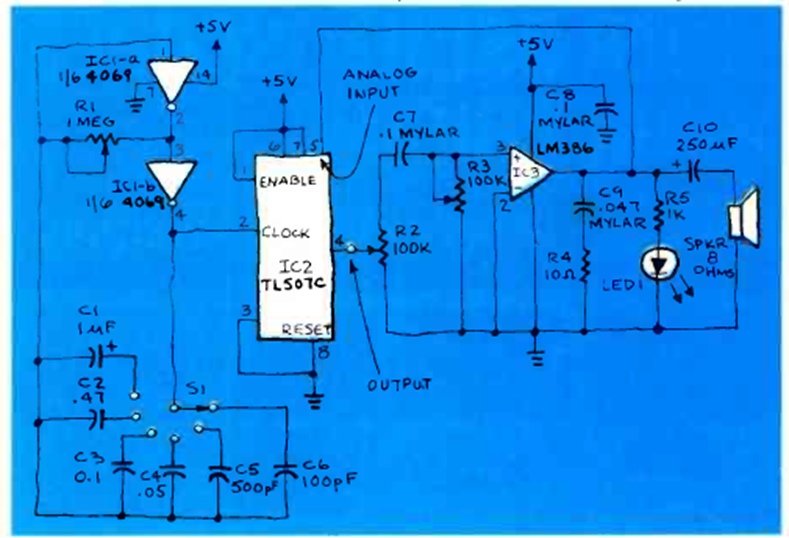

This circuit generates various types of sounds and can be used as a toy. The circuit is from Radio Electronics from January 1983. The amplifier can be replaced with a more modern type.
