Digital Clock (CB24398E)

Details
Written by: Newton C. Braga

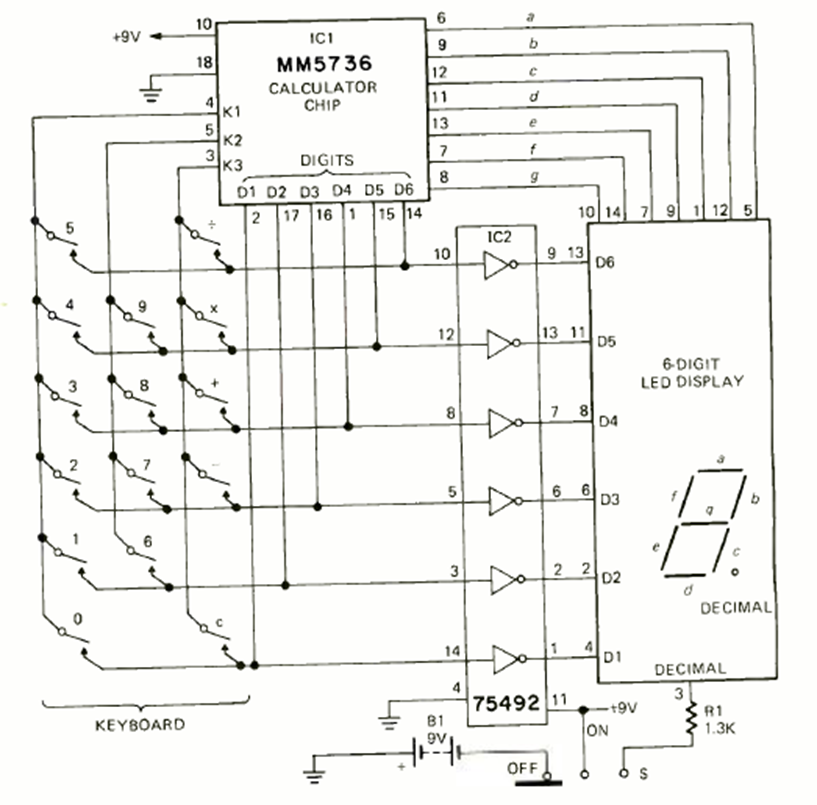

We found this circuit in the November 1975 issue of Radio Electronics magazine. It uses a digital module from the time with several adjustments. The power supply must have the indicated voltage.
