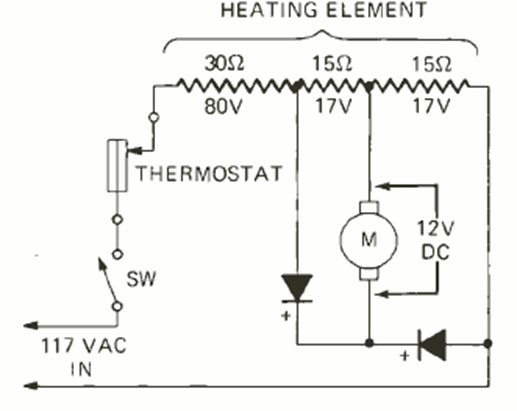

This circuit is from a Radio Electronics issue of May 1972. It consists of a commercial heating system in which a 12 V motor connected to the heating element circulates air. The motor connection point is calculated to correctly power the motor with half-wave rectification.
