5 W Amplifier with Tone Control (CB24853E)

Details
Written by: Newton C. Braga

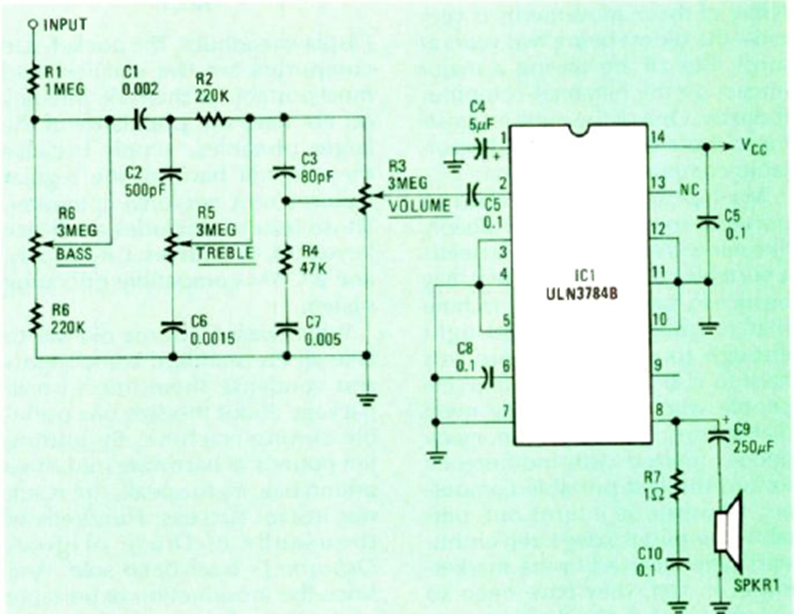

This circuit with the ULN3784B appeared in the October 1984 issue of Radio Electronics magazine. It can typically be powered from 9 to 24 V.
