Robot Eyes (CB24942E)

Details: Written by: Newton C. Braga

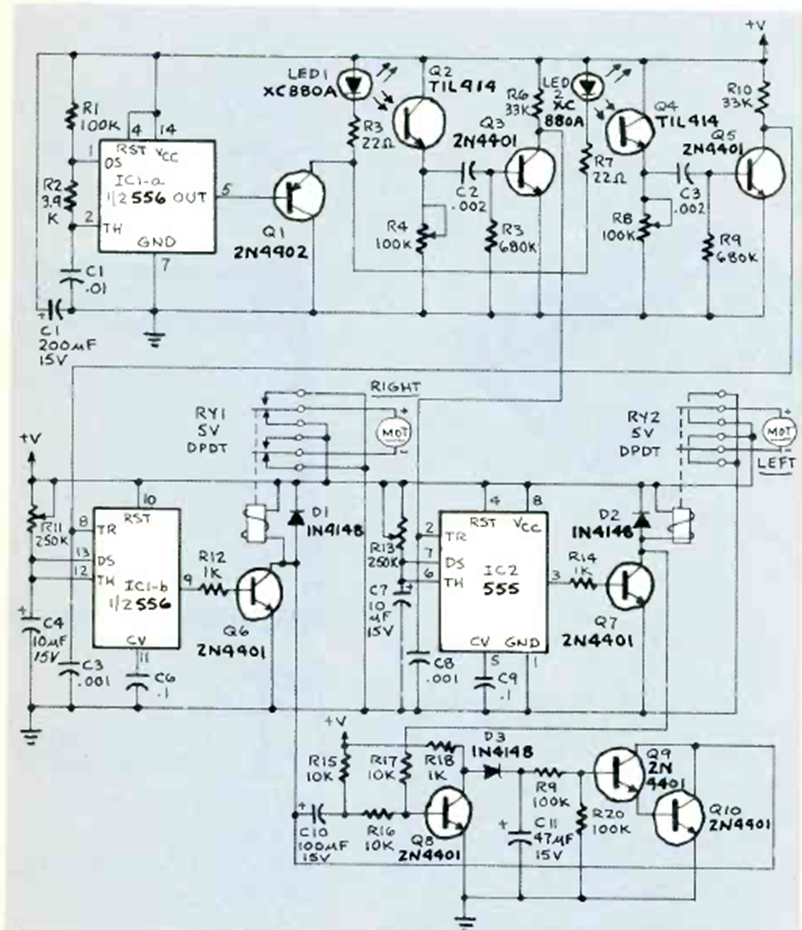

This optical sensor circuit for a robot was found in the March 1986 issue of Radio Electronics magazine. It controls two motors according to signals from optical sensors or couplers.
