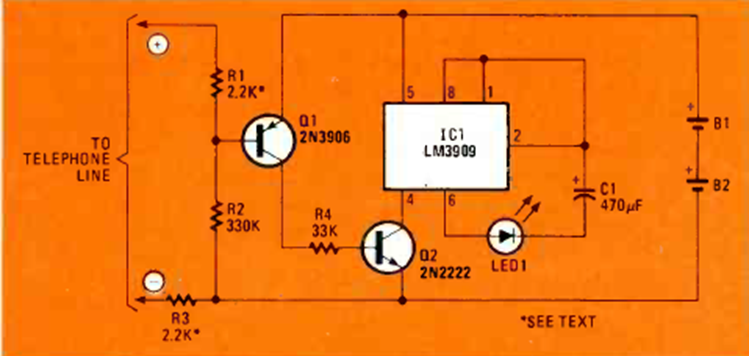

This circuit for common analog telephones was found in March 1982 Radio Electronics magazine. It applies to lines that have an extension (second telephone).
| Clique na imagem para ampliar |
Telephone Monitor in Use LM3909 (CB24688E)
