4-Channel Mixer (CB24146E)

Details
Written by: Newton C. Braga

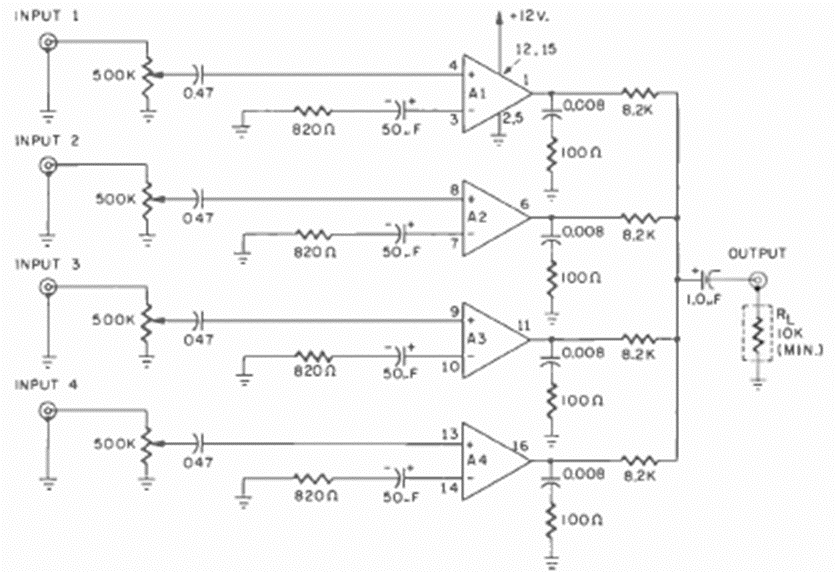

This mixer with 20 dB gain per channel uses RCA's CA3048 integrated circuits. We found it in the July 1971 Radio Electronics magazine. The power supply does not need to be symmetrical.
