Automatic Speed ​​Control C (CB24714E)

Details
Written by: Newton C. Braga

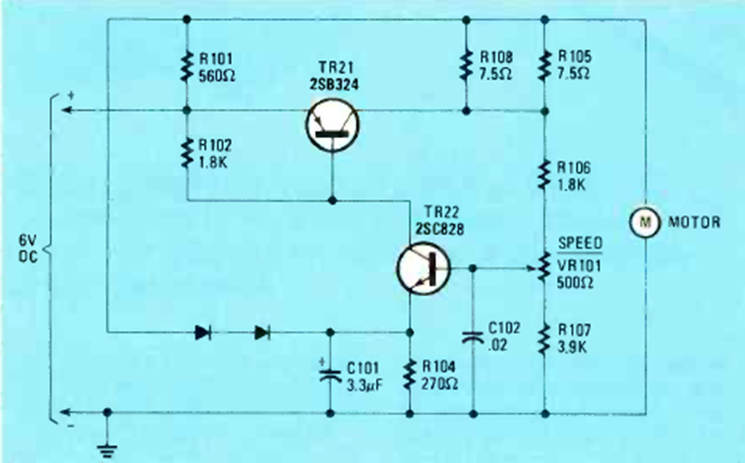

This circuit was found in a September 1982 Radio Electronics magazine. It was the type commonly used in devices with motors to maintain constant speed. We found it in tape recorders and VCRs.




| Clique na imagem para ampliar |
