Audio Limiter (CB24757E)

Details
Written by: Newton C. Braga

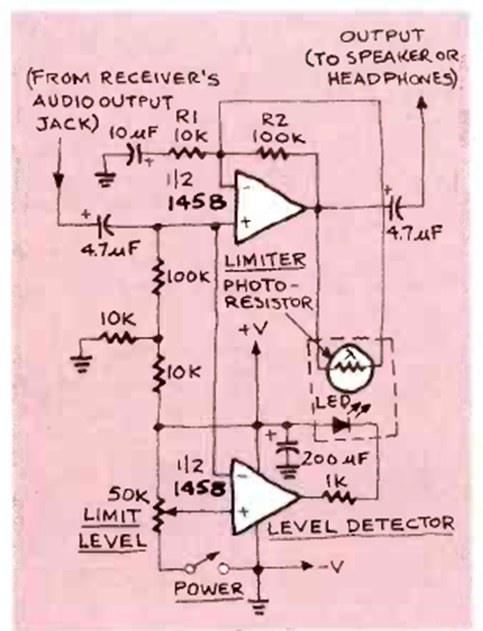

This low distortion circuit was shown in the July 1983 issue of Radio Electronics magazine. The circuit uses a pilot resistor, a component that is not very common today.
