Frequency Divider (CB24670E)

Details
Written by: Newton C. Braga

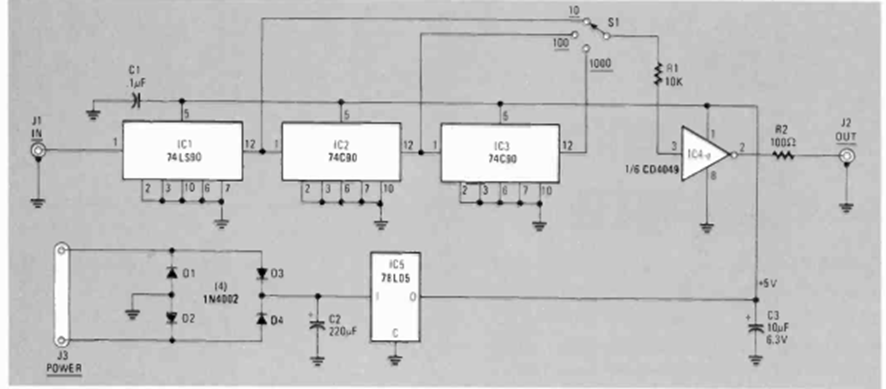

This TTL circuit consists of a frequency divider or converter that has values ​​selected by a switch. The circuit is from Radio Electronics from December 1980 and must be powered by a voltage of 5 V.




| Clique na imagem para ampliar |
