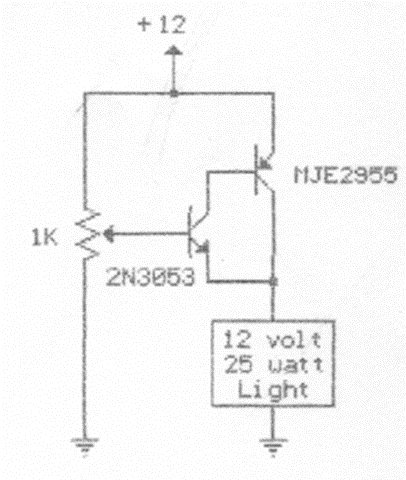

This high current control circuit was found in a publication from the 1990s. The power transistor must be equipped with a good heat sink. The current with the indicated transistor is of the order of 1 A.
Simple adjustable regulator (CB24429E)
- Details
- Written by: Newton C. Braga
