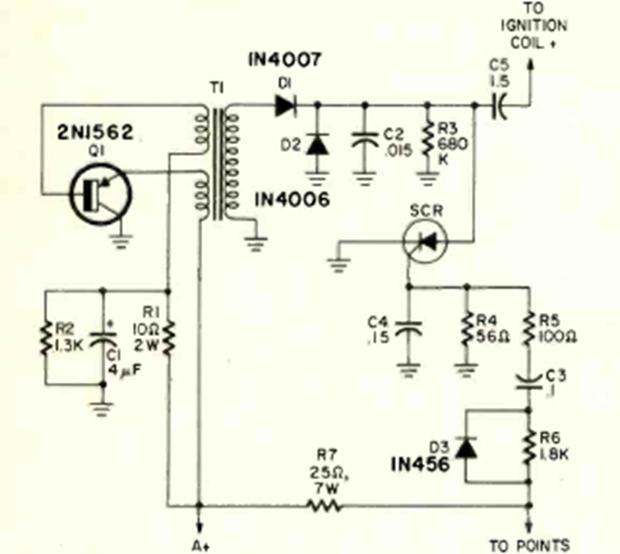

This capacitive discharge ignition system with 1 transistor and 1 SCR was found in the April 1972 issue of Radio Electronics magazine. The transistor is high power and must be mounted on a heat sink.
Simplified ignition (CB24184E)
- Details
- Written by: Newton C. Braga
