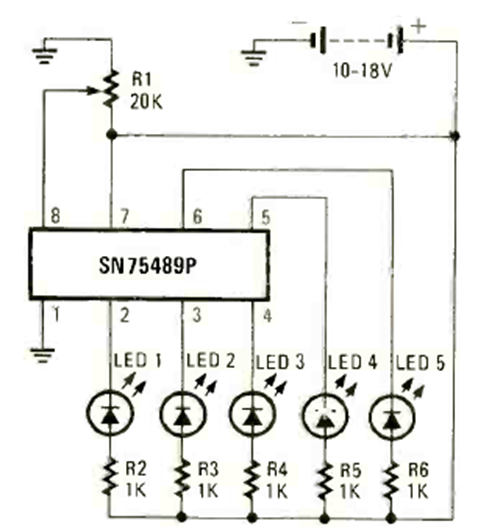

This bargraph or moving bar with LEDs is from a Radio Electronics magazine from June 1978. The integrated circuit for 5 LEDs is from Texas and can be powered with voltages from 10 to 18 V.
Bargraph SN74489P (CB24558E)
- Details
- Written by: Newton C. Braga
