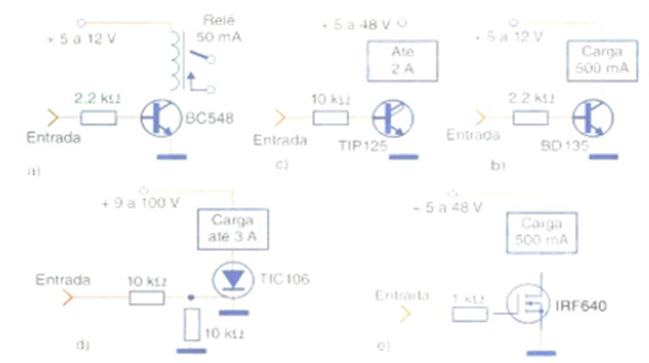

The figure shows several power stages that can be used with digital circuits and with the 555, as well as operational ones. The power depends on the transistor and the supply voltage. The circuit is from an article we published in the magazine Eletrônica Total 158 of 2013.
