PUT SCR trigger (CB24091E)
- Details
- Written by: Newton C. Braga

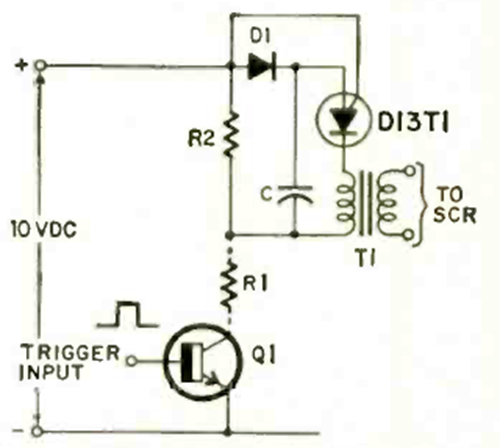

The purpose of this circuit is to convert a rectangular pulse into a sharp pulse for triggering an SCR. The circuit is from a Radio Electronics magazine from November 1970.
