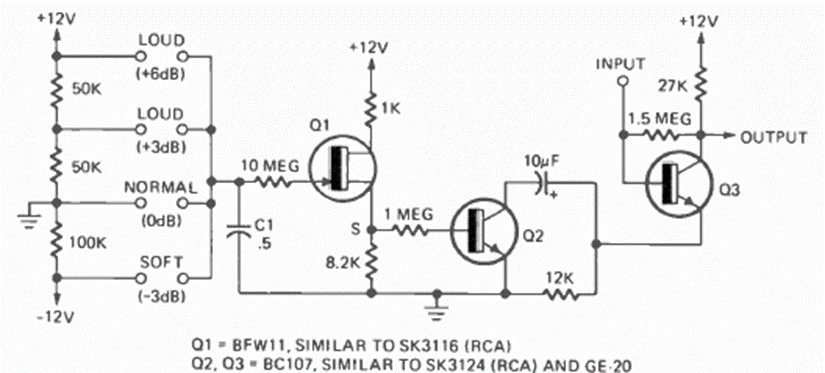

We found this circuit in a Radio Electronics magazine from January 1975. The transistors are common general-purpose transistors. The circuit is only applicable to equipment with isolated power supplies.
| Clique na imagem para ampliar |
Touch Volume Control (CB24362E)
- Details
- Written by: Newton C. Braga
