Timer 555 (CB24994E)
- Details
- Written by: Newton C. Braga

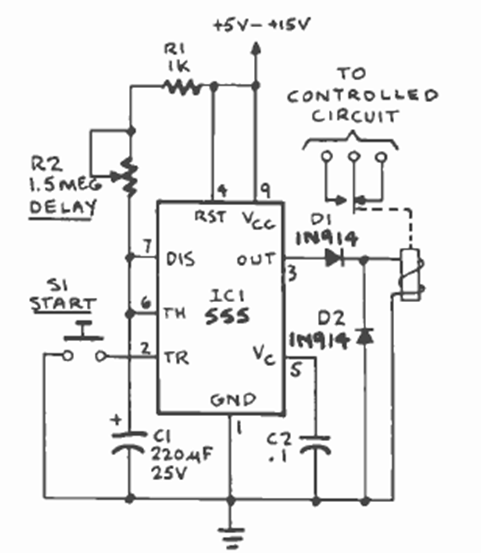

This is one of the possible timer configurations with the 555. We found it in October 1986 Radio Electronics magazine. It directly activates a relay. The time is given by C1.
