TLC555 PWM Motor Control (CB26038E)

Details
Written by: Newton C. Braga

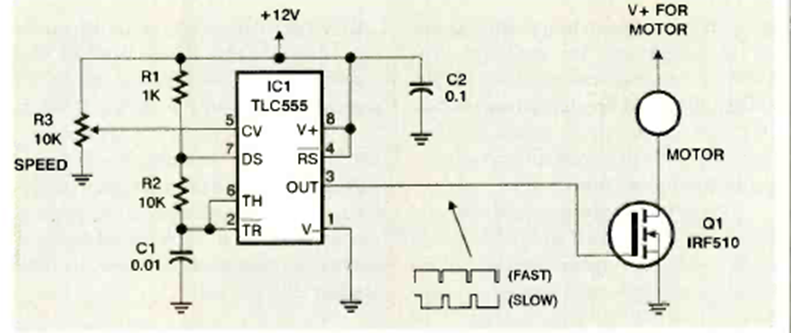

This simple circuit for motors that depends on the MOSFET used was found in the January 1998 Electronics Now magazine. The motor voltage does not need to be the same as the oscillator.
