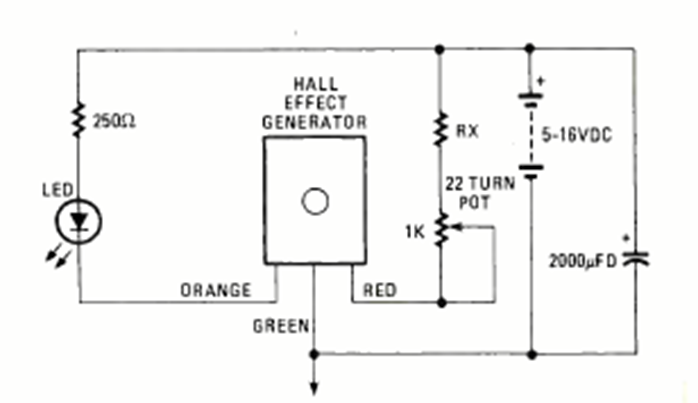

This very simple detector uses a hall sensor with a pendulum with a magnet, causing an LED to light up in the event of vibrations. The circuit is from a 1983 Electronics Experimenter Handbook Special Projects.
| Clique na imagem para ampliar |
Seismograph (CB26196E)
- Details
- Written by: Newton C. Braga
