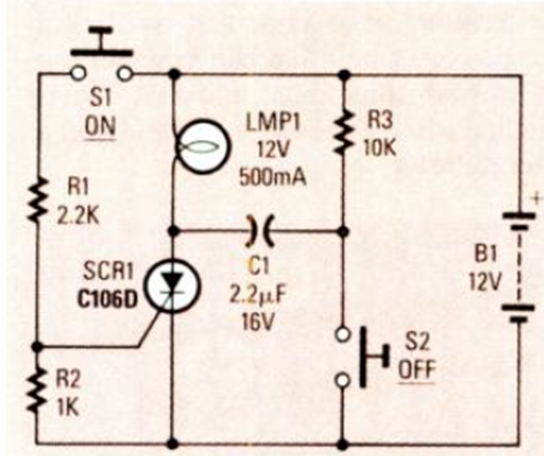

This circuit uses a capacitor to momentarily reduce the anode-to-cathode voltage of the SCR for shutdown. The circuit is one of many similar circuits found in this section. It appeared in the September 1987 issue of Radio Electronics magazine.
SCR Shutdown Circuit (CB25063E)
- Details
- Written by: Newton C. Braga
