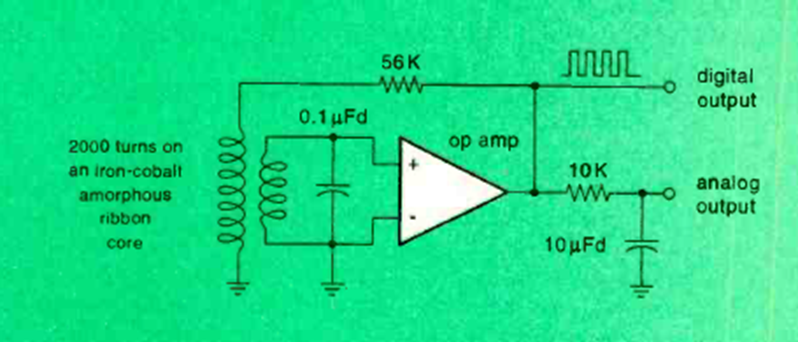

This circuit detects changes in magnetic flux in a coil as an external magnetic field moves. The circuit is from Electronics Now magazine, October 1996.
| Clique na imagem para ampliar |
Magnetic Resonant Trigger (CB25979E)
- Details
- Written by: Newton C. Braga
