Transformerless 5 to 24V power supply (CB26065E)

Details
Written by: Newton C. Braga

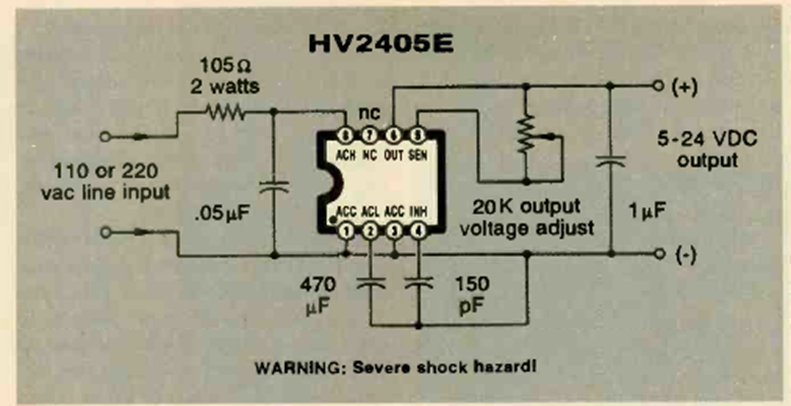

The HV2405E integrated circuit is not very common these days. This circuit was found in the August 1998 issue of Electronics Now magazine. The current is a few tens of milliamps.
