Active Antenna CIR26109S (CB26144E)

Details
Written by: Newton C. Braga

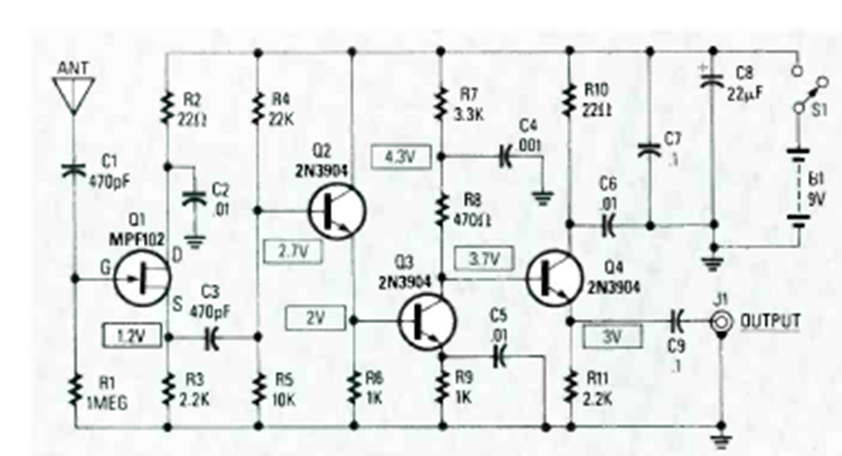

This circuit works as a booster operating with signals from 1 to 30MHz. The gain is between 1 and 20dB. The circuit is from the 1990 edition of Radio Electronics Experimenter magazine.
