Shortwave Converter (CE26331E)

Details
Written by: Newton C. Braga

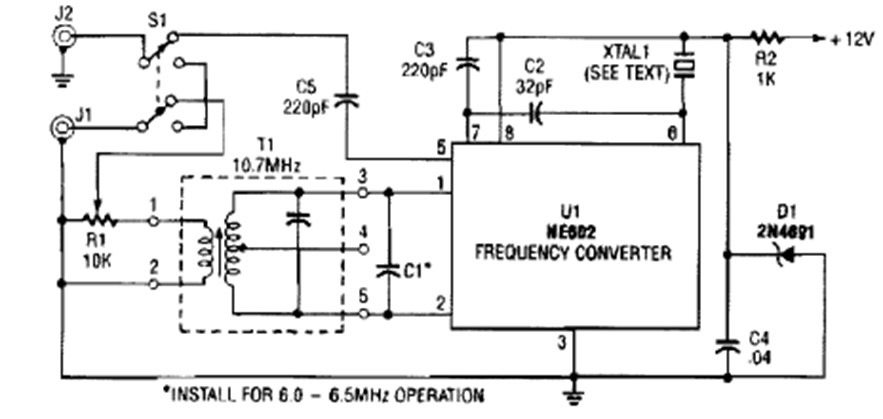

We found this circuit for receiving shortwave on a mediumwave radio in a 1986 Hobbyst Electronics PE. The circuit has the received band given by T1 which can be an FM IF.
