Heater Control (CB25083E)

Details
Written by: Newton C. Braga

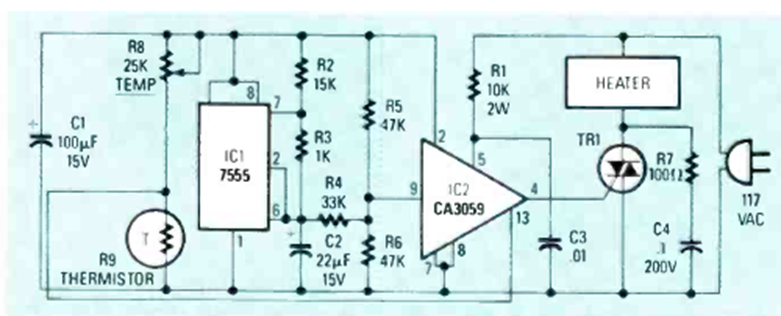

This circuit was found in the October 1987 Radio Electronics magazine. The circuit is a PWM control with a 555. It appears that the 555 is missing a connection that would be pin 4.




| Clique na imagem para ampliar |
